Manifolds 2 Brass Ball Valve With Filter 16 Bar 232Psi Female X Female 23Y
Product Details:
| Place of Origin: | China |
| Brand Name: | TASAN |
| Certification: | CE |
| Model Number: | 23Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | TASAN Standard Packing |
| Delivery Time: | 8 working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 70000pcs Per Week |
|
Detail Information |
|||
| Product Name: | Brass Ball Valve With Filter For Manifolds | Material: | Brass |
|---|---|---|---|
| Available Size: | 1/2"-1" | Connection Type: | Female X Female |
| Working Pressure: | 16 Bar(232 Psi) | Power: | Manual |
| Handle Type: | T Type | Handle Material: | Aluminum |
| Filter Material: | Stainless Steel 304 | Opening/closing Test: | 10,000 Times |
| Working Temperature Min./Max.: | –20°C ~110°C In Absence Of Steam | Thread: | ISO 228「equivalent To DIN EN 10226-1 And BS21」 |
| High Light: | 2 Brass Ball Valve 16 Bar,Manifolds 2 Brass Ball Valve,brass lever ball valve 232Psi |
||
Product Description

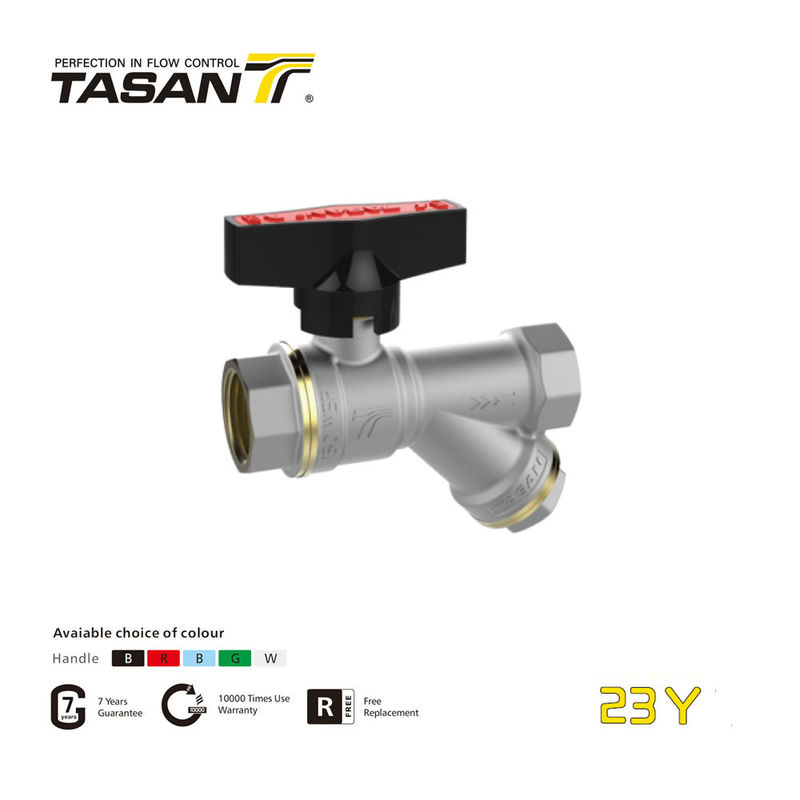

23Y Brass Ball Valve With Filter For Manifolds 16 Bar Female X Female
23 series Brass Ball Valve is the excellent quality design for High-low temperature & High pressure conditions, suitable for domestic and commercial plumbing system, industrial application, sanitary, heating & air-condition system, pneumatic systems, waterworks, oil pipelines, gasoline network, saturated steam, used for non-aggressive fluid only.
● Descriptions:
Nickel-plated Forged brass body
Chrome-plated Machined brass/S.S. ball *
Available Size: 1/2'' ~ 1''
Pressure rating: 16 Bar
Handle: Aluminum T Handle
Working temperature Min./Max.: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
Opening/closing Test : 10,000 times
Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」
The thread, color of handle, materials, etc. can be customized.
- ● Details
Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Valve Ball: Smooth and wear resisiting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
O-ring: EPDM & NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
Handle Screw Nut: TASAN Professional-Antirust handles with S.S. handle screw
| Part Code | Size | A | B1 | C1 | Pcs/Carton |
| 23YNS303 | 1/2'' | 78 | 39 | 52 | 100 |
| 23YNS304 | 3/4'' | 91 | 46 | 56 | 80 |
| 23YNS305 | 1'' | 109 | 50 | 62 | 60 |
● Structure Charts
| 1 | Body | Forged Brass |
| 2 | Seats | PTFE |
| 3 | Ball | Forged Brass Rod/S.S. |
| 4 | Body Cap | Forged Brass |
| 5 | Stem | Machined Brass Rod/S.S. |
| 6 | O-ring | EPDM 70 Shore |
| 7 | Gland Packing | PTFE |
| 8 | Gland | Machined Brass Rod |
| 9 L | Lever Handle | Z.P. Steel Varnished ,PVC Sleeve |
| 10 L | Screw Nut | Stainless Steel |
| 11 T | T Handle | Aluminium |
| 12 T | Handle Screw | Zinc-plated Steel |
| 13 T | Name Plate | POM |
| 14 | Filter | Stainless Steel |
| 15 | Washer | PTFE |
| 16 | Filter End | Forged Brass |
● Certificates
● Company Profiles
TASAN,one of the best worldwide brand of Flow Tech products. Manufacturing with the glorious history over 30 years, We promise to customers the 7 years quality warranty and the cooperation with the best known insurance company PICC for international quality accident. Ensure the most cost-effective products and safeguard service for our agents worldwide. Our success lies in the satisfaction of each of our valued customers.
TASAN,insisting 100% original own-design,Long-term strategic partnership with the famous European valve manu facturers and the registered laboratories for R&D and testing.
TASAN,has an excellent international team of marketing.
Join in TASAN, we must be your best choice.
● Tasan's Motto
We Never Stop Pursuing Perfection
● Tasan's Products:
Valvas And Fittings For Construction Work And Industrial Equipment,Sanitary Ware.
● Tasan's Market:
Overseas And Domestic
● Tasan's Sales Methods:
BRAND Agency,OEM,ODM
● Factory Construction Area:
900.000 Sq.ft.
● Research And Development Team:
20 Research And Design Specialists.
● SALES NETWORK
More Than 45 Countries Including The US, Canada, Germany, the Uk, The Netherlands,ltaly, Russia,dubai
● Our Package Details
TASAN logo forged in valve body.
TASAN logo stamped or printed on handle.
Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
PE plastic ECO bag.
Product spec. label sticked on the side of master carton.
TASAN special packing tape.
Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
