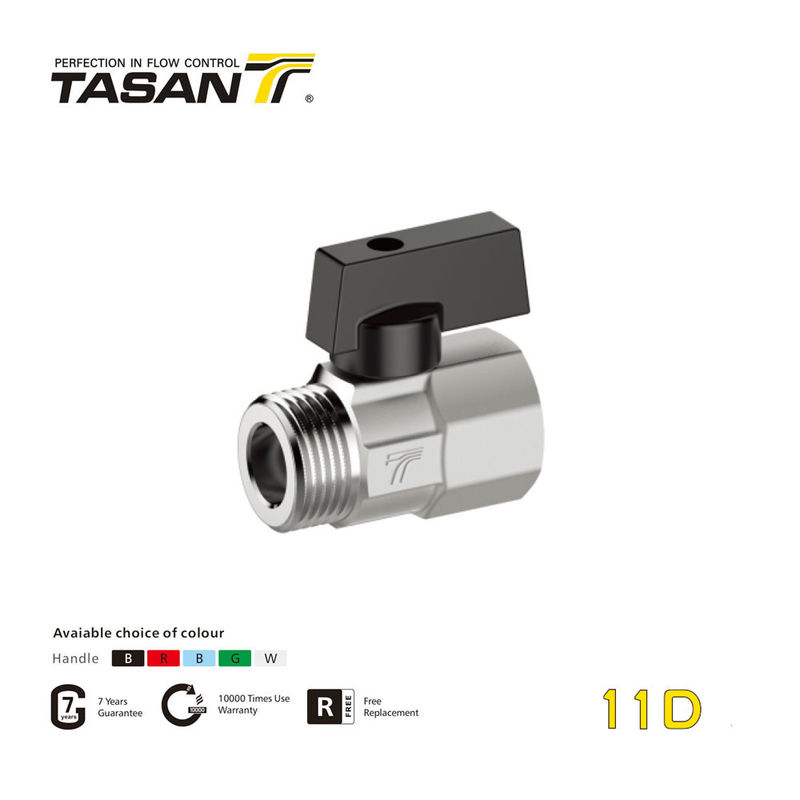

L Handle 362.5 Psi Brass Handle Ball Valve pn25 Bar ISO 228 Thread
Product Details:
| Place of Origin: | China |
| Brand Name: | TASAN |
| Certification: | CE |
| Model Number: | 11D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | TASAN Standard Packing |
| Delivery Time: | 8 working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 70000pcs Per Week |
|
Detail Information |
|||
| Product Name: | Brass Ball Valve Water Mini Ball Valve PN25 Bar Female X Male | Material: | Brass |
|---|---|---|---|
| Port Size: | 1/4"-3/4" | Connection Type: | Female X Male |
| Working Temperature Min./Max.: | -0 ℃ To +90 ℃ | Pressure Rating:: | 25 Bar |
| Thread: | ISO 228 | Power: | Manual |
| High Light: | 362.5 Psi Brass Handle Ball Valve,L Handle pn25 ball valve,362.5 Psi water ball valve |
||
Product Description
11D Brass Ball Valve Water Minin Ball Valve PN25 Bar Female X Male
- Technical Standard
- Item: 12F Brass Water Minin Ball Valve
- Nominal Pressure: 25 Bar(362.5 Psi)
- Working temperature Min./Max. From -0℃ To +90℃
- Threads: ISO 228(equivalent to DIN259 and BS2779)
- Structure: Ball
- Size: 1/4’’ ~ 3/4’’
- Material: Brass or can be customized
- Handle Material: Aluminum
- Handle Type: L handle
- Connection Type: Female x Male
*The thread, color of handle, materials, etc. can be customized.
- Details
Brass Valve Body: High density forging, no blister, no air holes, no leakages. Made by special highprecision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precisionCNC machines.
Valve Ball: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use withoutdeformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is noteasy aging.
Handle: Aluminum L Handle Plated with paint, the surface is coated against corrosion, the coating is thickened,comfortable using.
O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easyto leak.
| Size | 1/4’’ to 3/4’’ | Application | Water,Gas,Oil |
| Power | Manual | Colour | Chrome-plated |
● Structure Charts
● Certificates
● Company Profiles
TASAN,one of the best worldwide brand of Flow Tech products. Manufacturing with the glorious history over 30 years, We promise to customers the 7 years quality warranty and the cooperation with the best known insurance company PICC for international quality accident. Ensure the most cost-effective products and safeguard service for our agents worldwide. Our success lies in the satisfaction of each of our valued customers.
TASAN,insisting 100% original own-design,Long-term strategic partnership with the famous European valve manu facturers and the registered laboratories for R&D and testing.
TASAN,has an excellent international team of marketing.
Join in TASAN, we must be your best choice.
● Tasan's Motto
We Never Stop Pursuing Perfection
● Tasan's Products:
Valvas And Fittings For Construction Work And Industrial Equipment,Sanitary Ware.
● Tasan's Market:
Overseas And Domestic
● Tasan's Sales Methods:
BRAND Agency,OEM,ODM
● Factory Construction Area:
900.000 Sq.ft.
● Research And Development Team:
20 Research And Design Specialists.
● SALES NETWORK
More Than 45 Countries Including The US, Canada, Germany, the Uk, The Netherlands,ltaly, Russia,dubai
● Our Package Details
TASAN logo forged in valve body.
TASAN logo stamped or printed on handle.
Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
PE plastic ECO bag.
Product spec. label sticked on the side of master carton.
TASAN special packing tape.
Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
● FAQ
Q: How long is your product guarantee period?
A: We have Seven-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: Can you accept OEM and ODM?
A: TASAN has our own BRAND Agency. OEM and ODM do as well
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
