Female X Female 1/2 Inch-4 Inch Brass Gate Valve PN25 Gate Valve 25A
Product Details:
| Place of Origin: | China |
| Brand Name: | TASAN |
| Model Number: | 25A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | TASAN Standard Packing |
| Delivery Time: | 8 working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000pcs Per Week |
|
Detail Information |
|||
| Product Name: | Brass Gate Valve PN25 | Material: | Brass |
|---|---|---|---|
| Port Size: | 1/2"-4" | Connection Type: | Female X Female |
| Working Temperature Min./Max.: | -20°(-150°((-4°F-302° F) In Absence Of Steam | Pressure Rating:: | PN25/363psi -- 1/2"~4" (DN15~100mm) |
| Thread: | ISO 228 「equivalent To DIN EN 10226-1 And BS21」 | Power: | Manual |
| High Light: | Brass Gate Valve PN25,4 inch Brass Gate Valve PN25,Female PN25 Gate Valve |
||
Product Description

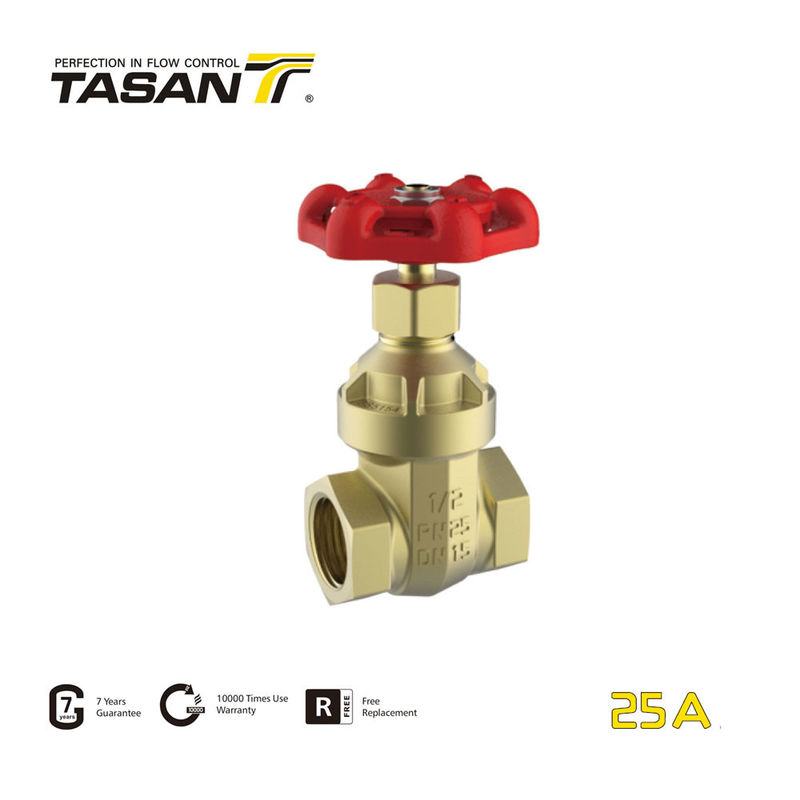

25A Brass Gate Valve PN25
25A series gate valve is super-design.suitable for domestic and commercial plumbing system, industrial application, sanitary, heating.waterworks, oil pipelines.used for non aggressive fluid only.
● Pressure rating:
PN25/363psi -- 1/2"~4" (DN15~100mm)
● Working temperature Min./Max.:
-20°(-150°((-4°F-302° F) in absence of steam
● Descriptions:
Forged brass body
PN25/363psi -- 1/2"~4" (DN15~100mm)
-20°(-150°((-4°F-302° F) in absence of steam
ISO 228 「equivalent to DIN EN 10226-1 and BS21」
● Structure Charts
| Part Code | Size | A/mm | B/mm | C/mm |
| 25AS301 | 1/4’’ | 37 | 72 | 50 |
| 25AS302 | 3/8’’ | 37 | 72 | 50 |
| 25AS303 | 1/2’’ | 40 | 72 | 50 |
| 25AS304 | 3/4’’ | 45 | 82 | 55 |
| 25AS305 | 1’’ | 51 | 95 | 60 |
| 25AS306 | 11/4’’ | 57 | 111 | 70 |
| 25AS307 | 11/2’’ | 60 | 110 | 80 |
| 25AS308 | 2’’ | 60 | 135 | 90 |
| 25AS309 | 21/2’’ | 78 | 172 | 100 |
| 25AS310 | 3’’ | 90 | 199 | 110 |
| 25AS311 | 4’’ | 102 | 232 | 130 |
| 1 | Body | High-density Forged Brass |
| 2 | Wedge Disc | High-density Forged Brass |
| 3 | Stem | Forged Brass |
| 4 | Washer | PTFE |
| 5 | Bonnet | Forged Brass |
| 6 | Lock Nut | Machined Brass Rod |
| 7 | Packing Nut | Machined Brass Rod |
| 8 | Gland Packing | PTFE |
| 9 | Handwheel | Aluminum |
| 10 | Name Plate | Aluminum |
| 11 | Wheel Nut | Stainless Steel |
The thread, color of handle, materials, etc. can be customized.
● Company Profiles
TASAN,one of the best worldwide brand of Flow Tech products. Manufacturing with the glorious history over 30 years, We promise to customers the 7 years quality warranty and the cooperation with the best known insurance company PICC for international quality accident. Ensure the most cost-effective products and safeguard service for our agents worldwide. Our success lies in the satisfaction of each of our valued customers.
TASAN,insisting 100% original own-design,Long-term strategic partnership with the famous European valve manu facturers and the registered laboratories for R&D and testing.
TASAN,has an excellent international team of marketing.
Join in TASAN, we must be your best choice.
● Tasan's Motto
We Never Stop Pursuing Perfection
● Tasan's Products:
Valvas And Fittings For Construction Work And Industrial Equipment,Sanitary Ware.
● Tasan's Market:
Overseas And Domestic
● Tasan's Sales Methods:
BRAND Agency,OEM,ODM
● Factory Construction Area:
900.000 Sq.ft.
● Research And Development Team:
20 Research And Design Specialists.
● SALES NETWORK
More Than 45 Countries Including The US, Canada, Germany, the Uk, The Netherlands,ltaly, Russia,dubai
● Our Package Details
TASAN logo forged in valve body.
TASAN logo stamped or printed on handle.
Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
PE plastic ECO bag.
Product spec. label sticked on the side of master carton.
TASAN special packing tape.
Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
● FAQ
Q: How long is your product guarantee period?
A: We have Seven-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: Can you accept OEM and ODM?
A: TASAN has our own BRAND Agency. OEM and ODM do as well
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
