PN5/72.5psi Brass Gas Ball Valve Full Flow Ball Valve 1/2 Inch 35C
Product Details:
| Place of Origin: | China |
| Brand Name: | TASAN |
| Certification: | CE |
| Model Number: | 35C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | TASAN Standard Packing |
| Delivery Time: | 8 working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 70000pcs Per Week |
|
Detail Information |
|||
| Product Name: | Brass Gas Ball Valve,Full Flow | Material: | Brass |
|---|---|---|---|
| Port Size: | 1/2"-4" | Connection Type: | Female X Male |
| Working Temperature Min./Max.: | –20°C ~60°C (-4°F~140°F) | Pressure Rating:: | PN5/72.5psi -- 1/4"~2" (DN8~50mm) |
| Thread: | Female Threads: ISO 7/1 Rp Parallel ; Male Threads: ISO 7/1 R Taper | Power: | Manual |
| High Light: | 72.5psi Brass Gas Ball Valve,Brass Gas Ball Valve 1/2 Inch,PN5 Brass Gas Ball Valve |
||
Product Description

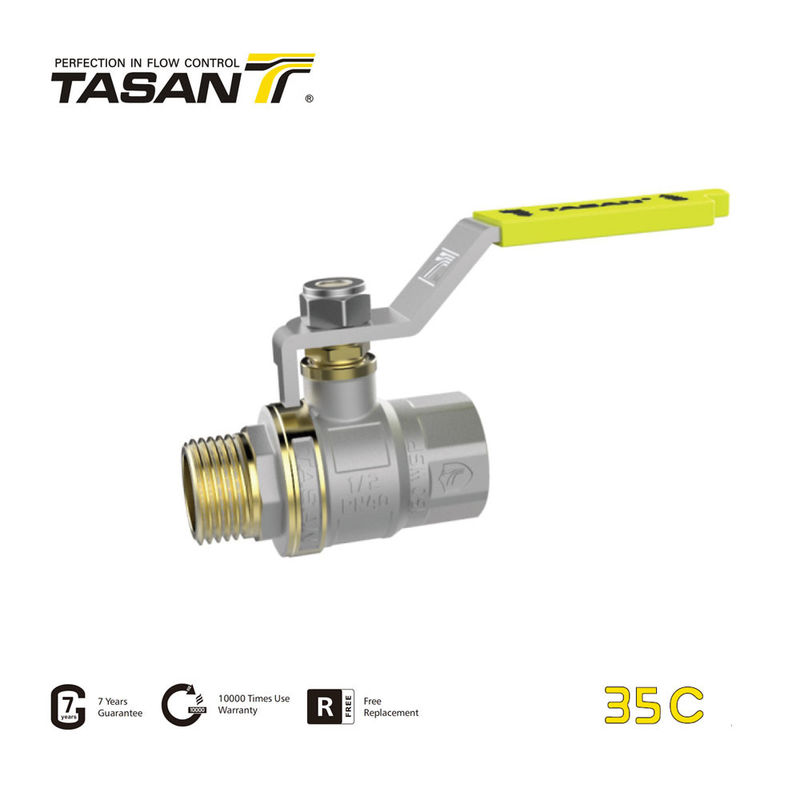

35C Brass Gas Ball Valve, Full Flow
35series Gas BV is the excellent quality design in accordance with the European standard EN 331: 1998,
suitable for the gas of Natural gas,Town gas and Liquid gas.
| Pressure rating | Working temperature Min./Max. | Brass Gas Ball Valve Descriptions |
| PN5/72.5psi -- 1/4"~2" (DN8~50mm) | –20°C ~60°C (-4°F~140°F) | Nickel-plated Forged brass body Chrome-plated Machined brass/S.S. Ball Full Flow opening TASAN Blowout-proof stem - Minimal 10000 times of use Designed with adjustable gland and EPDM O-ring(1/2"~4") Male threads: ISO 7/1 R taper Female threads: ISO 7/1 Rp parallel |
 |
||
● Structure Charts
| Part Code | Size | A/mm | B/mm | C/mm |
| 35CNS301 | 1/4’’ | 46 | 45 | 90 |
| 35CNS302 | 3/8’’ | 46 | 47 | 90 |
| 35CNS303 | 1/2’’ | 59 | 50 | 90 |
| 35CNS304 | 3/4’’ | 65 | 58 | 105 |
| 35CNS305 | 1’’ | 78 | 66 | 115 |
| 35CNS306 | 11/4’’ | 93 | 75 | 125 |
| 35CNS307 | 11/2’’ | 102 | 83 | 135 |
| 35CNS308 | 2’’ | 120 | 98 | 160 |
| 1 | Body | High-density Forged Brass |
| 2 | Seats | Pure PTFE (Polytetrafluoroethylene) |
| 3 | Ball | Forged Brass/S.S.* |
| 4 | Body Cap | Forged Brass |
| 5 | Stem | Machined Brass Rod/S.S.* |
| 6 | O-ring | EPDM 70 Shore |
| 7 | Gland Packing | Pure PTFE (Polytetrafluoroethylene) |
| 8 | Gland | Machined Brass Rod |
| 9 | Lever Handle | Z.P. Steel Varnished, PVC Sleeve |
| 10 | Screw Nut | Stainless Steel |
| 11 | T Handle | Aluminum |
| 12 | Name Plate | POM |
| 13 | Handle Screw | Nickel-plated Steel |
The thread, color of handle, materials, etc. can be customized.
| Company Profiles |
TASAN,one of the best worldwide brand of Flow Tech products. Manufacturing with the glorious history over 30 years, We promise to customers the 7 years quality warranty and the cooperation with the best known insurance company PICC for international quality accident. Ensure the most cost-effective products and safeguard service for our agents worldwide. Our success lies in the satisfaction of each of our valued customers. |
| Tasan's Motto |
We Never Stop Pursuing Perfection
|
| Tasan's Products |
Valvas And Fittings For Construction Work And Industrial Equipment,Sanitary Ware.
|
| Tasan's Market |
Overseas And Domestic |
| Tasan's Sales Methods |
BRAND Agency,OEM,ODM
|
| Factory Construction Area |
900.000 Sq.ft.
|
| Research And Development Team |
20 Research And Design Specialists.
|
| SALES NETWORK |
More Than 45 Countries Including The US, Canada, Germany, the Uk, The Netherlands,ltaly, Russia,dubai
|
| Our Package Details |
TASAN logo forged in valve body. TASAN logo stamped or printed on handle. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing. PE plastic ECO bag. Product spec. label sticked on the side of master carton. TASAN special packing tape. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing. |
● FAQ
Q: How long is your product guarantee period?
A: We have Seven-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: Can you accept OEM and ODM?
A: TASAN has our own BRAND Agency. OEM and ODM do as well
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
● Certificates
