DN10-25mm Brass Bib Cock Double O Ring Stem Type Wear Resistance 50A
Product Details:
| Place of Origin: | China |
| Brand Name: | TASAN |
| Certification: | CE |
| Model Number: | 50A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | TASAN Standard Packing |
| Delivery Time: | 8 working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 70000pcs Per Week |
|
Detail Information |
|||
| Product Name: | 50A Brass Hose Bibcock | Material: | Brass |
|---|---|---|---|
| Stem Type: | Double O-ring | Handle Material: | Z.P. Steel Varnished, PVC Sleeve |
| Port Size: | 3/8''~1'' | Working Temperature Min./Max.: | -20°C-100°C (-4°F-212°F) |
| Pressure Rating:: | PN16/232psi -- 3/8"-1" (DN10-25mm) | Thread: | ISO 228「equivalent To DIN EN 10226-1 And 8S21」 |
| Power: | Manual | ||
| High Light: | 25mm Brass Bib Cock,DN10 Brass Bib Cock,DN10 brass hose bibcock |
||
Product Description

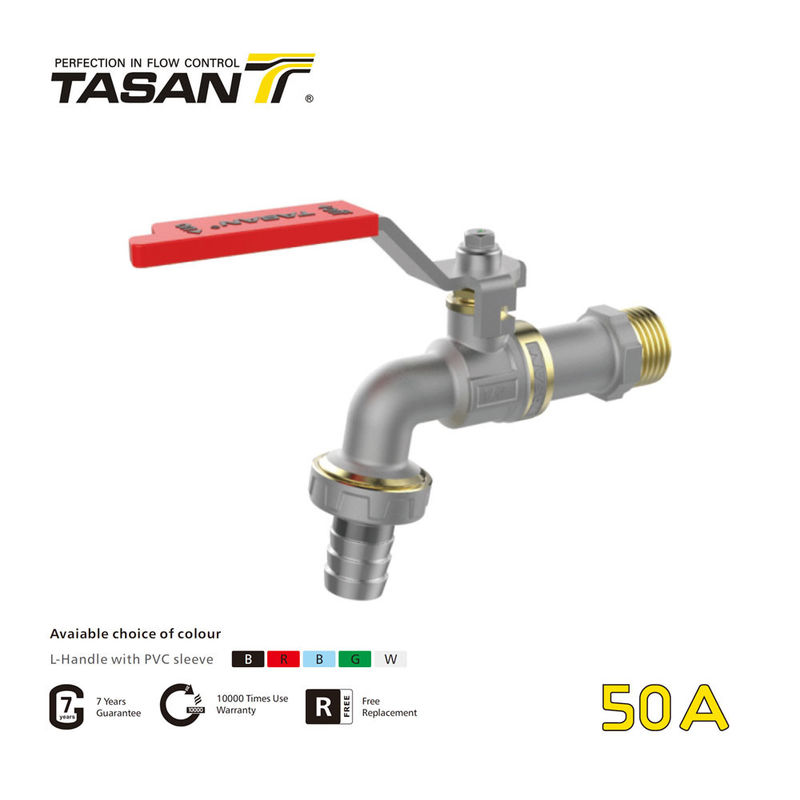

50A Brass Hose Bibcock
50A Brass Hose Bibcock is the excellent quality design.
● Pressure rating:
PN16/232psi -- 3/8"-1" (DN10-25mm)
● Working temperature Min./Max.:
-20°C-100°C (-4°F-212°F)
● Descriptions:
orged brass body in nickel-plated
TASAN Blowout-proof stem - Minimal 30000 times of useDesigned with ad」ustable gland and
EPDM 0-ring(1/2"-1 ")
Threads: ISO 228「equivalent to DIN EN 10226-1 and 8S21」
● Structure Charts
| Part Code | Size | A/mm | B/B1/mm | C/C1/mm |
| 50ANS302 | 3/8’’ | 86 | 94 | 90 |
| 50ANS303 | 1/2’’ | 87 | 94 | 90 |
| 50ANS304 | 3/4’’ | 100 | 107 | 105 |
| 50ANS305 | 1’’ | 120 | 127 | 115 |
| 1 | Body | High-density Forged Brass |
| 2 | Seats | Pure PTFE (Polytetrafluoroethylene) |
| 3 | Ball | Forged Brass |
| 4 | Tail | Forged Brass |
| 5 | Stem | Machined Brass Rod |
| 6 | O-ring | EPDM 70 Shore |
| 7 | Gland Packing | Pure PTFE (Polytetrafluoroethylene) |
| 8 | Gland | Machined Brass Rod |
| 9 | Lever Handle | Z.P. Steel Varnished, PVC Sleeve |
| 10 | Handle Washer | Nickel-plated Steel |
| 11 | Handle Screw | Nickel-plated Steel |
| 12 | T Handle | Aluminum |
| 13 | Name Plate | POM |
| 14 | Seal | NBR 70 Shore |
| 15 | Hose Connector | Machined Brass Rod |
| 16 | Filter | POM |
| 17 | Cap | Forged Brass |
The thread, color of handle, materials, etc. can be customized.
● Certificates
● Company Profiles
TASAN,one of the best worldwide brand of Flow Tech products. Manufacturing with the glorious history over 30 years, We promise to customers the 7 years quality warranty and the cooperation with the best known insurance company PICC for international quality accident. Ensure the most cost-effective products and safeguard service for our agents worldwide. Our success lies in the satisfaction of each of our valued customers.
TASAN,insisting 100% original own-design,Long-term strategic partnership with the famous European valve manu facturers and the registered laboratories for R&D and testing.
TASAN,has an excellent international team of marketing.
Join in TASAN, we must be your best choice.
● Tasan's Motto
We Never Stop Pursuing Perfection
● Tasan's Products:
Valvas And Fittings For Construction Work And Industrial Equipment,Sanitary Ware.
● Tasan's Market:
Overseas And Domestic
● Tasan's Sales Methods:
BRAND Agency,OEM,ODM
● Factory Construction Area:
900.000 Sq.ft.
● Research And Development Team:
20 Research And Design Specialists.
● SALES NETWORK
More Than 45 Countries Including The US, Canada, Germany, the Uk, The Netherlands,ltaly, Russia,dubai
● Our Package Details
TASAN logo forged in valve body.
TASAN logo stamped or printed on handle.
Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
PE plastic ECO bag.
Product spec. label sticked on the side of master carton.
TASAN special packing tape.
Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
● FAQ
Q: How long is your product guarantee period?
A: We have Seven-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: Can you accept OEM and ODM?
A: TASAN has our own BRAND Agency. OEM and ODM do as well
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
